شركة "غوانغدونغ هونغتو" لتكنولوجيا الأدوات
 |
| Place of Origin: | China |
| اسم العلامة التجارية: | DahoMeter |
| إصدار الشهادات: | FCC, ISO |
| Model Number: | HT-1600-EL |
| Minimum Order Quantity: | 1 set |
|---|---|
| الأسعار: | negotiable |
| Packaging Details: | standard exporting wooden package |
| Delivery Time: | 5-7 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 |

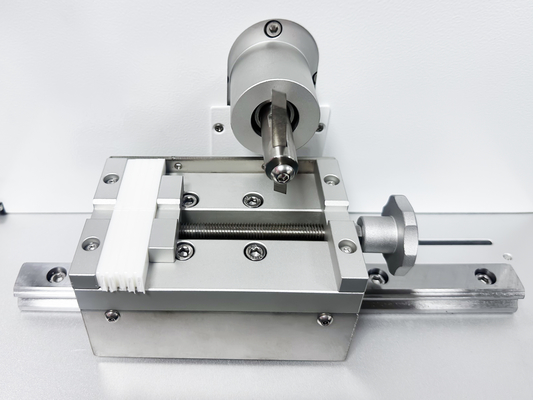

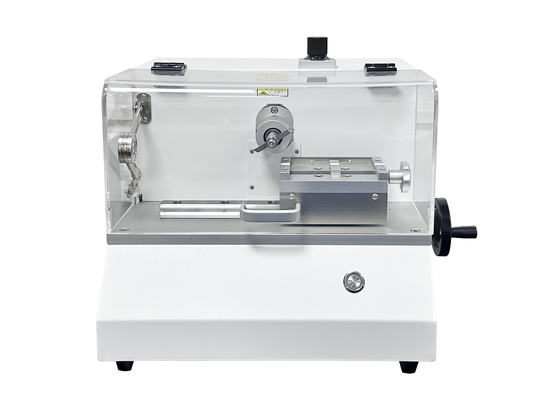

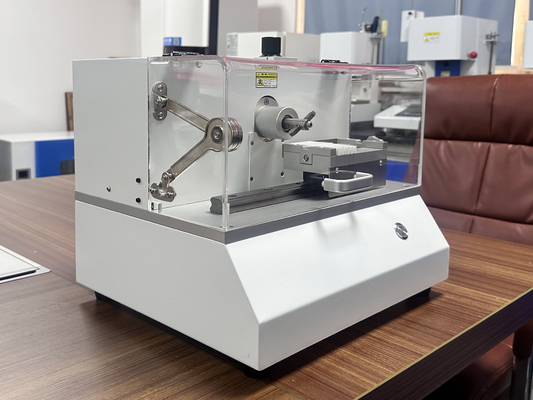

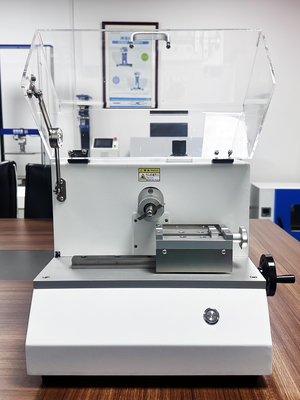

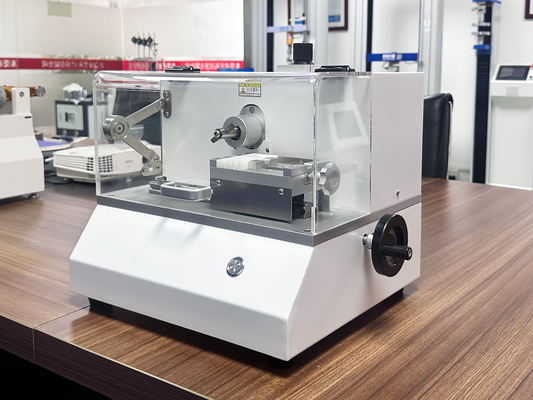

The electronic notching machine is used for the sample preparation of the non-metallic material when it is did the impact toughness testing by izod impact tester or the charpy impact tester, can be used for scientific research institutions, universities and colleges, non-metallic materials production plants and other units of the laboratory to make notch samples.
ISO180 "Plastics - Determination of Izod Impact Strength of Rigid Materials"
GB/T1843 "Izod Impact Test Method for Rigid Plastics"
JB/T8761 "Plastic Izod Impact Testing Machine"
ASTM D256 "Test method for determining the impact strength of plastic IZOD pendulum" ISO179 "Plastics - Determination of Charpy Impact Strength of Rigid Materials"
GB/T1043 "Rigid Plastic Charpy Impact Test Method"
JB/T8762 "Plastic Charpy Impact Testing Machine"
4.Specifications:
1.Workbench stroke: ＞160mm
2.Feed speed: 30mm/min
3.Sample type:Ⅰmodel, Ⅱ model, Ⅲ model
4.Notch type: A Model, B Model (optional), C Model (optional)
5.Cutting tool parameters of notching machine:
A Model 45°±1° r=0.25mm±0.05mm
B Model 45°±1° r=1.0mm±0.05mm
C Model 45°±1° r=0.1mm±0.02mm
